COHERENT INNOVA
300 ION LASER SYSTEMS Laser
Innovations supports all models of the
Coherent Innova 300 small frame Ion
Laser Systems that the manufacturer no longer
supports, including the Coherent Innova 300C
Ion Laser System. Our years of experience and
technical expertise combine to insure that
we will keep your Innova 300 and Innova 300C laser system running at a
fraction of the cost that you would expect.

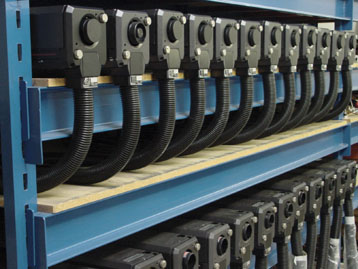

![Coherent Innova 300 Ion Laser System, Argon Krypton Ultraviolet UV ArKr - Laser Innovations](images/I300Heads_CoherentInnova300_IonLaser_ArgonKryptonUltraviolet_LaserInnovations.jpg)
Coherent Innova
300 - Small Frame Ion Laser System |
COHERENT INNOVA
300 ION LASER SYSTEMS SERVICED
-
Coherent
Innova
301
Krypton
Ion
Laser
System
-
Coherent
Innova
302
Krypton
UV
Ion
Laser
System
-
Coherent
Innova
304
Argon
Ion
Laser
System
-
Coherent
Innova
305
Argon
Ion
Laser
System
-
Coherent
Innova
306
Argon
Ion
Laser
System
-
Coherent
Innova
307
Argon
Ion
Laser
System
-
Coherent
Innova
308
Argon
Ion
Laser
System
-
Coherent
Innova
310
Argon
Ion
Laser
System,
Sealed
rear
optic
-
Coherent
Innova
318
Argon
Ion
Laser
System,
Sealed
rear
optic
-
Coherent
Innova
325
UV
Argon
Ion
Laser
System,
Sealed
rear
optic
-
Coherent
Innova
326
UV
Argon
Ion
Laser
System,
Sealed
rear
optic
-
Coherent
Innova
328
UV
Argon
Ion
Laser
System,
Sealed
rear
optic
-
Coherent
Innova
300
FRED
Ion
Argon
Laser
System
|
[Return to Top]
Coherent Innova
300 - Small Frame Ion Laser System |
COHERENT INNOVA
300 ION LASER SYSTEMS AVAILABLE FOR PURCHASE
-
Coherent
Innova
301
Krypton
Ion
Laser
System
-
750
mW,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
302
Krypton
UV
Ion
Laser
System
-
150
mW,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
304
Argon
Ion
Laser
System
-
4.0
Watt,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
305
Argon
Ion
Laser
System
-
5.0
Watt,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
306
Argon
Ion
Laser
System
-
6.0
Watt,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
307
Argon
Ion
Laser
System
-
7.0
Watt,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
308
Argon
Ion
Laser
System
-
8.0
Watt,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
310
Argon
Ion
Laser
System
-
10.0
Watt,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
318
Argon
Ion
Laser
System
-
8.0
Watt,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
325
UV
Argon
Ion
Laser
System
-
400
mW,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
326
UV
Argon
Ion
Laser
System
-
500
mW,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
-
Coherent
Innova
328
UV
Argon
Ion
Laser
System
-
1.0
Watt,
1
year
/
2000
hour
warranty
on
the
Innova
Ion
Plasma
Tube
|
[Return to Top]
Coherent Innova
300 - Small Frame Ion Laser System |
GENERAL DATA - COHERENT INNOVA
300 ION LASER SYSTEMS
Power
supply
dimensions
|
Height |
19.3
cm
7.6
in |
Width |
54.3
cm
21.3
in |
Length |
53.3
cm
21.0
in |
Weight |
39
Kg
86
lbs |
|
Laser
head dimensions
|
Height |
17.9
cm
7.0
in |
Width |
15.0
cm
5.9
in |
Length |
122.5
cm
48.2
in |
Weight |
42
Kg
92
lbs |
|
Remote
module
dimensions
|
Height |
4.0 cm
1.6 in |
Width |
16.3 cm
6.44 in |
Length |
11.3 cm
4.5 in |
Weight |
0.5 Kg
1 lbs |
|
[Return to Top]
Coherent Innova
300 - Small Frame Ion Laser System |
SPECIFICATIONS - COHERENT INNOVA
300 ION LASER SYSTEMSSystem Parameter Specifications |
Bore
configuration |
Tungsten
disk,
aluminum-oxide
ceramic
tube |
Plasma
Tube
Cooling |
Conductively
water
cooled |
Resonator
Contruction |
Symmetrical
SuperInvar
3-Rod
Resonator |
Cavity
specification |
Flat
high
reflector
mirror,
curved
output
mirror |
Output
Polarization |
100:1
Vertical
:
Horizontal |
Cavity
length:
Multiline
/
Single-line |
1.16
m
/
1.14
m |
Excitation |
Current
regulated
DC |
Input
voltage |
208
+/-
10%
VAC
50
or
60
Hz,
3
phase
with
ground,
no
neutral |
Maximum
input
current |
60
Amps
per
phase |
Maximum
tube
discharge
current: |
|
Argon
304
|
40
Amps |
Argon
305
|
45
Amps |
Argon
306
|
45
Amps |
Krypton
301
|
40
Amps |
Water
flow
rate
(I-304
-
I-307) |
|
minimum
|
8.5
liters/min
(2.2
gal/min) |
maximum
|
11.6
liters/min
(3.0
gal/min) |
Water
incoming
temperature |
10-35oC
(50-95oF) |
Water
pressure |
152-276
kPa
(22-40
psi) |
Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.[Return to Top] Performance Parameter Specifications |
|
I-304 thru I-307 |
I-308 |
Beam
diameter
(1) |
1.5
mm |
1.8
mm |
Beam divergence (full angle) |
0.5
mrad |
0.4
mrad |
Beam-Pointing Stability |
<5.0 µrad |
Beam Offset |
<5.0 µm |
|
|
Long-Term
Power Stability
(8hr) |
|
With
PowerTrack
(3) |
|
Current
Regulation |
+/-
1.0%
(3) |
Light
Regulation |
+/-
0.5%
(3)
+/-
1.0%
(4) |
Without
PowerTrack
(2) |
|
Current
Regulation |
+/-
2.0% |
Light
Regulation |
+/-
0.5% |
Optical
noise
(5) |
0.2% |
(1)
Measured at 1/e2
points, 514.5 nm (Argon)
and 647.1 nm (Krypton) at output
mirror.
(2) Max.
peak variation over 30 min.
period after 1-hr warm-up.
(3) Maximum
peak variation after 15 min.
warm-up.
(4)
Maximum peak
variation after 1 min. warm-up.
(5) Measured
with a 10 Hz - 2 MHz wide band photodiode
driving a resistive load.
Specifications
are for reference only and do
not constitute warranty
specifications on serviced
lasers by Laser Innovations. [Return to Top] Output Power (TEMoo) Specifications |
Argon
Wavelength
(nm) |
I-304 |
I-305 |
I-306 |
I-307 |
I-308 |
Multiline Visible
(457.9 nm - 514.5 nm) |
4.0 W |
5.0 W |
6.0 W |
7.0 W |
8.0 W |
Multiline UV
(333.4 nm - 363.8 nm Argon
337.5 nm - 356.4 nm Krypton) |
0.20 |
0.40 |
0.50 |
0.60 |
0.75 |
1090.0 |
0.04 |
0.05 |
0.07 |
0.07 |
0.10 |
528.7 |
0.20 |
0.35 |
0.42 |
0.42 |
0.55 |
514.5 |
1.70 |
2.00 |
2.40 |
2.40 |
3.20 |
501.7 |
0.30 |
0.40 |
0.48 |
0.48 |
0.48 |
496.5 |
0.50 |
0.60 |
0.72 |
0.72 |
0.95 |
488.0 |
1.30 |
1.50 |
1.80 |
1.80 |
2.40 |
476.5 |
0.50 |
0.60 |
0.72 |
0.72 |
0.95 |
472.7 |
0.12 |
0.20 |
0.24 |
0.24 |
0.24 |
465.8 |
0.10 |
0.15 |
0.18 |
0.18 |
0.18 |
457.9 |
0.25 |
0.35 |
0.42 |
0.42 |
0.56 |
454.5 |
0.05 |
0.12 |
0.14 |
0.14 |
0.14 |
UV 363.8 |
0.07 |
0.14 |
0.17 |
0.19 |
0.25 |
UV 351.1 |
0.07 |
0.14 |
0.17 |
0.19 |
0.25 |
Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.
![Coherent Laser Innova 300 Ion Laser System, Krypton Argon Ultraviolet UV ArKr - Laser Innovations](images/CoherentIonLaser3_CoherentInnova300C_IonLaser_ArgonKryptonUltraviolet_LaserInnovations.gif)
[Return to Top]
Coherent Innova
300 - Small Frame Ion Laser System |
TECHNICAL QUESTIONS - COHERENT INNOVA
300 ION LASER SYSTEMSPlease send all technical questions to the email address below. [Return to Top]
Coherent Innova
300 - Small Frame Ion Laser System |
CONTACT US Laser Innovations 1150 E. Main Street Santa Paula CA 93060 Tel (805) 933-0015 Fax (805) 933-0042 E-mail:
